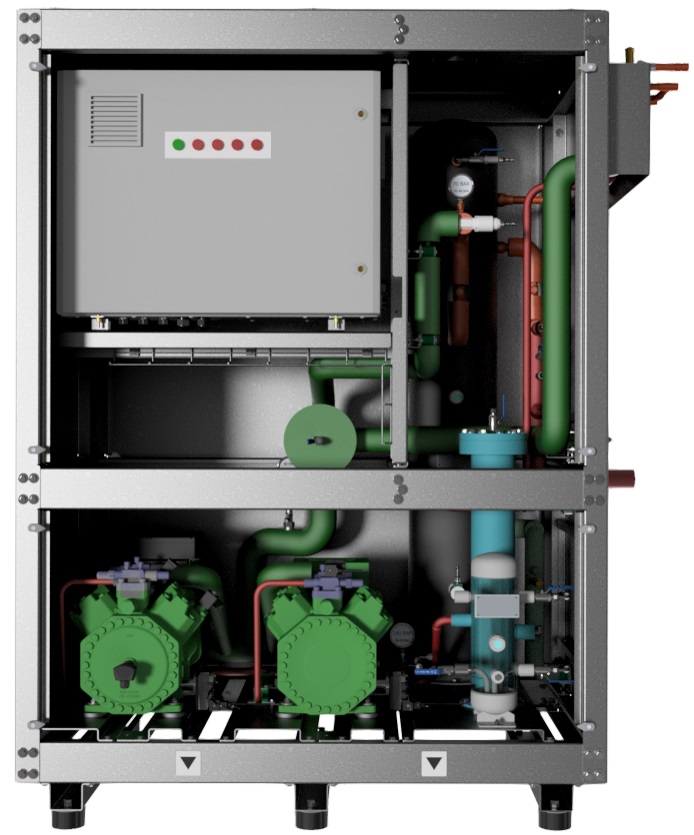

ECO₂ Mini Refrigeration Rack System

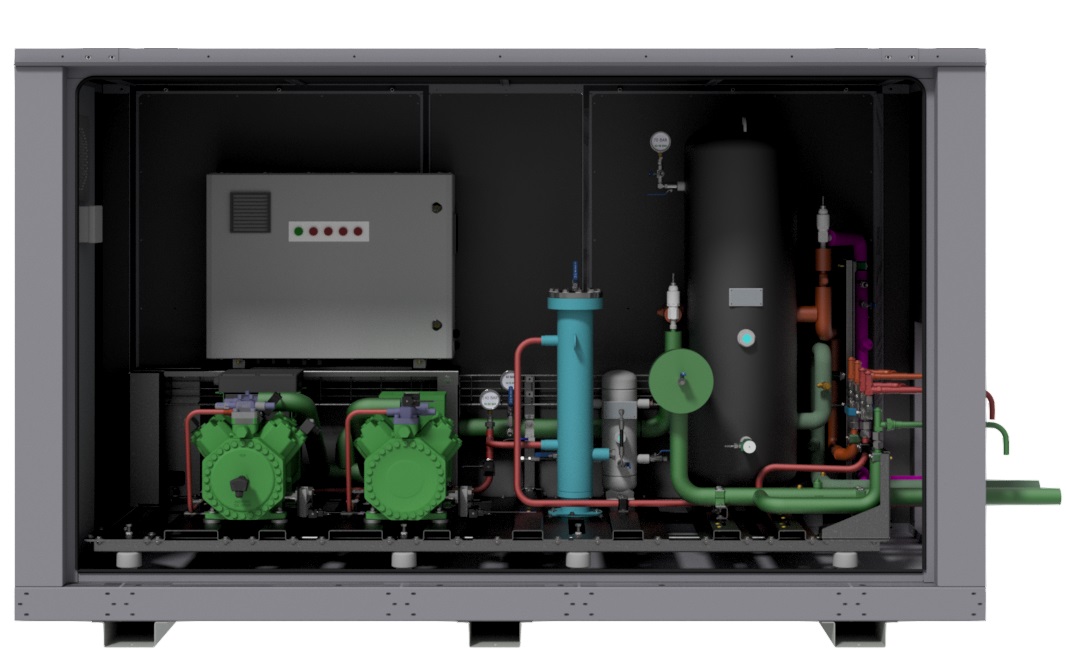

Available as packaged or housed with remote gas cooler

The ECO₂ Mini is a natural refrigeration system using R744/CO₂ that offers heat reclaim potential. This booster HT or dual temperature unit is ideal for applications with smaller cooling requirements from 30kW to 60kw HT.

Application – larger convenience stores

Configurations – 2×0 or 2×1 reciprocating

HT Capacity – up to 35 kW at -7°C S.S.T

LT Capacity – up to 4 kW at -37°C S.S.T

The unique configuration of the system provides impressive energy and financial savings over traditional reciprocating technologies.

• Small footprint by design, saving precious space for convenience store application.
• Handles single or dual temperature applications.
• Roof mounted gas cooler available to further reduce footprint if the site is tight on space.
• Our ECO₂ solution boasts a GWP of 1, helping small stores to meet their net zero targets.

Benefits

Based on our market-leading ECO₂ product range, this ‘Best in Class’ innovative design offers unparalleled levels of efficiency, low noise, increased redundancy and ease of maintenance you won’t find anywhere else.

The ECO₂ Mini is the ideal HT or dual temperature CO₂ system for smaller retail applications including convenience stores and industrial or process applications.

As a natural solution that uses CO₂, the ECO₂ Mini has a low global warming potential, whilst the variable speed drive and digital compressor controls provide significant energy saving benefits.

The ECO₂ Mini is easy to service and maintain and has excellent heat recovery potential when combined with our heat reclaim technology for space and water heating.

The ECO₂ Mini is designed, manufactured and tested in the UK at our manufacturing facility in Bristol.

Key Features

• GWP of 1
• CO₂ leak detection alarm available
• Suitable for all format supermarket and retail or industrial/process applications
• Compact transcritical design – capacities up to 60kW HT or DT
• Available as a packaged or externally housed unit with remote gas cooler or internal frame and remote gas cooler
• Designed for easy access for service and maintenance
• Modular compressor configuration means a wide application range
• Prefabricated copper piping with durability and cost-effective manufacturing
• Integral 100ltr intermediate receiver
• Single or dual temperature configuration
• Supplied with anti-vibration mounts as standard to reduce noise
• Fully enclosed compressors, vessels and pipework
• Optional sound attenuated enclosure to minimise noise disruption
• Integral control panel
• Energy-saving VSD and digital controls on compressors
• Excellent heat reclaim potential for heating water or to provide space heating and cooling
